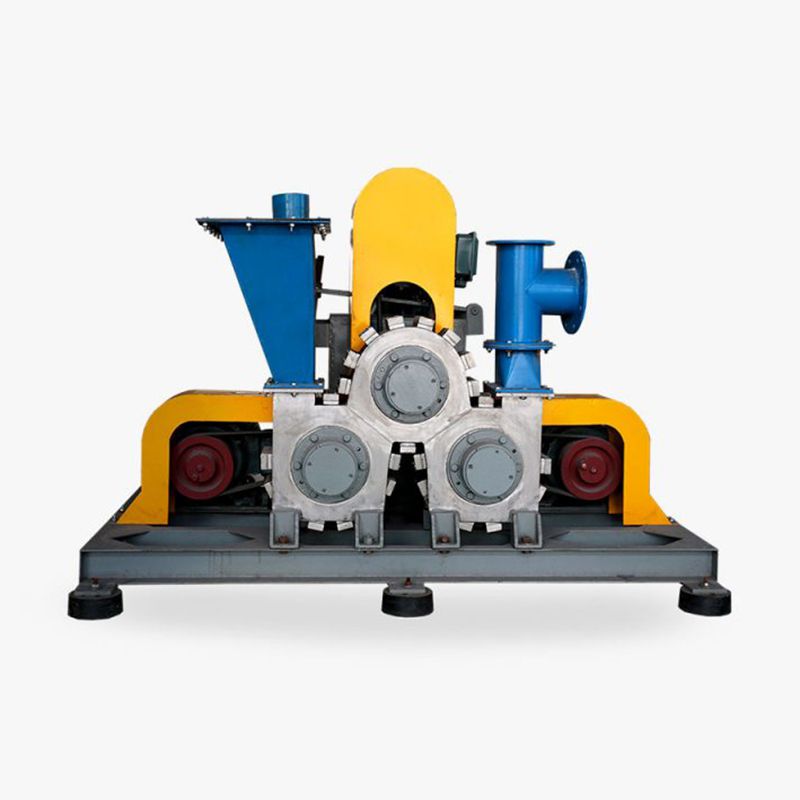

Three-roller Mill

Achieving powder surface modification by changing the cyclone vortex

Three-roller Mill

Three-roller Mill

Achieving powder surface modification by changing the cyclone vortex

  • Relative motion of the three rotors modifies the impact of cyclone swirls to coat the powder's surface.
  • Mature technology requires minimal initial investment, hence making it suitable for stearic acid coating.
  • Heat generated through self-friction and no additional heat source is required. As a result, the amount of auxiliary equipment and the cost for operation is kept to a minimum.
  • Suitable for 325 ~ 1250 mesh powder coating.
  • Power range: 11 kW ~ 225 kW
  • Maximum output: 6 t/h
Request a Quote
Technical parameter (calcium carbonate)
Parameter
300/3
600/3
900/3
Grinding disc rotate speed (rpm) 5050 2580 1850
Grinding disc linear speed (m/s) 77.4 85.1 87.2
Grinding disc power (kW) 3×18.5 3×37 3×37
Max. air flow (m³/h) 2000 6000 9000

Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.
ALPA is a highly respected name in particle and powder processing, transforming the way the industry views traditional powder processing. Our research and development initiatives have focused on dry grinding, classification and separation, powder shape control and surface modification of particles and powders over the past two decades. As a result, we are proficient in providing tailored, CE-certified products, such as air jet mills, mechanical mills, air classifiers, ball mill with classifier, surface modification lines and more.
