Multi-functional Rotor Mill

Combining functions of drying, dispersing and modifying

Multi-functional Rotor Mill

Multi-functional Rotor Mill

Combining functions of drying, dispersing and modifying

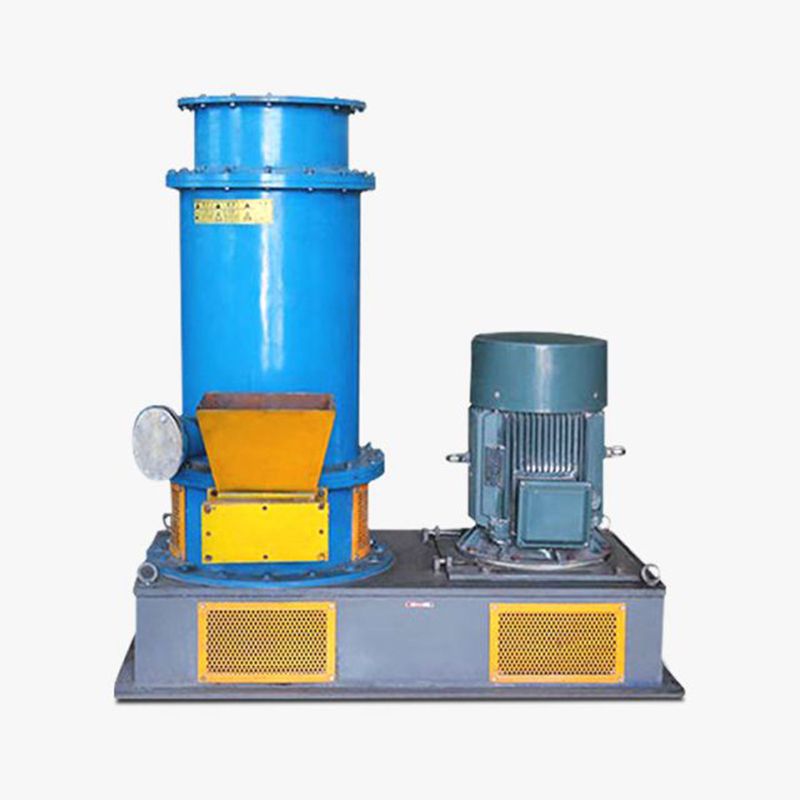

The multi-functional rotor mill is a powerful mechanical mill. It features multiple rotors attached to a vertical shaft, along with a multi-layer, grinding blade head that provides high shearing and scattering forces. Furthermore, it has the ability to be connected to a hot air source, granting it the capability to carry out the tasks of drying, dispersing, and even modifying materials.

When operating at high speeds, the mill creates a powerful airflow, through which the agglomerated powder particles are trapped in a special-designed stator. High pressure and speed wind generate a strong vortex, generating shear, friction, and centrifugal forces which then quickly break down the material into individual particles, or crystal particles close to their natural size.

Request a Quote
Advantages
  • Integration of the drying and grinding processes ensures high efficiency while keeping operation costs low.
  • Designed to withstand temperatures up to 400℃, with the bearing designed with heat insulation.
  • The grinding block and lining are changeable, and a variety of materials can be used depending on the type of material being processed.
  • Built-in classifier wheel optional, allowing coarse materials to be milled circularly.
  • External heated air optional, allowing drying and grinding process operated at the same time. Powered by high-speed rotors, materials in the grinding chamber are surrounded by hot air resulting in a large area for heat exchange. This makes moisture evaporate efficiently and the heat source is more efficiently utilized, hence achieving an energy saving of 30-50% as compared to traditional drying methods.
Technical Parameters
Parameter
350
500
750
1000
1250
1500
2000
Max. rotate speed (rpm) 5580 4130 2760 2070 1650 1400 1050
Grinding disc linear speed (m/s) 102.3 108.1 108.3 108.3 108.3 110.0 110.0
Power (kW) 30 55 90 110~132 160~200 250~315 315~355
Max. air flow (m³/h) 4000 6000 12000 15000 20000 25000 35000
Min. air flow (m³/h) 1250 2000 3000 4000 5000 6000 8000
ALPA is a highly respected name in particle and powder processing, transforming the way the industry views traditional powder processing. Our research and development initiatives have focused on dry grinding, classification and separation, powder shape control and surface modification of particles and powders over the past two decades. As a result, we are proficient in providing tailored, CE-certified products, such as air jet mills, mechanical mills, air classifiers, ball mill with classifier, surface modification lines and more.
