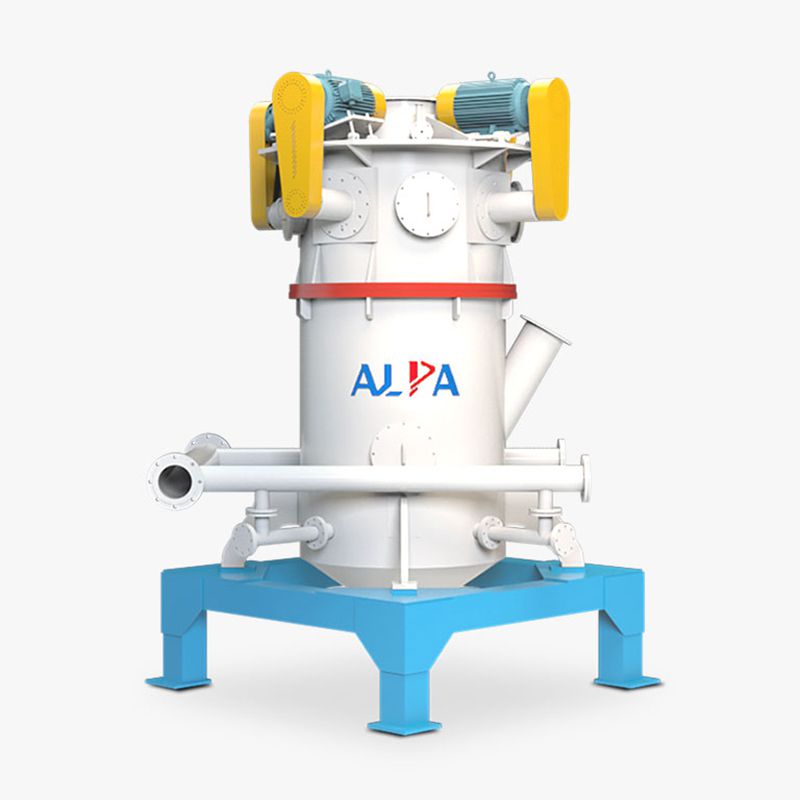

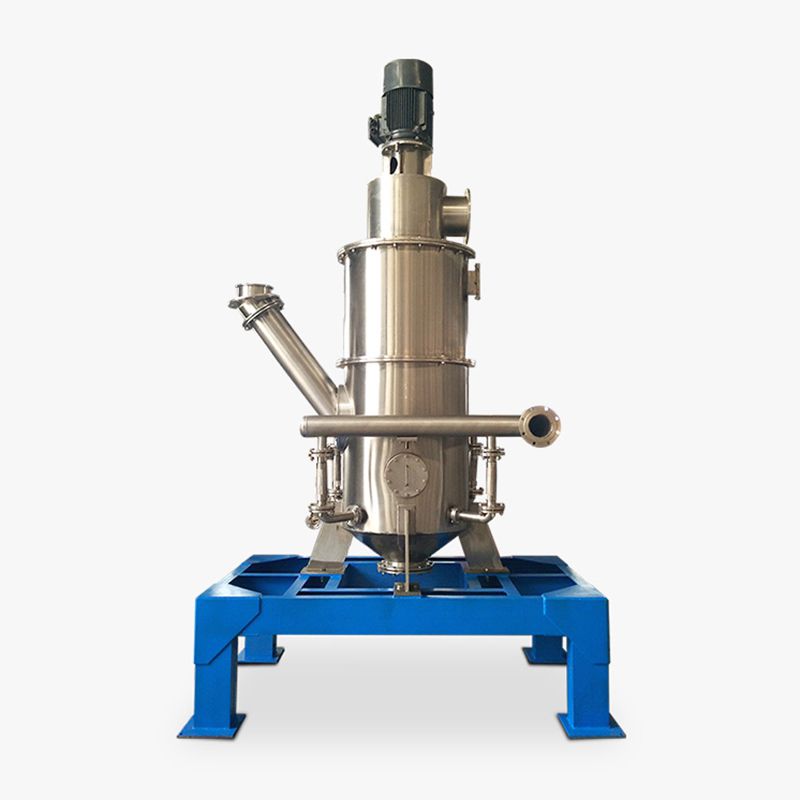

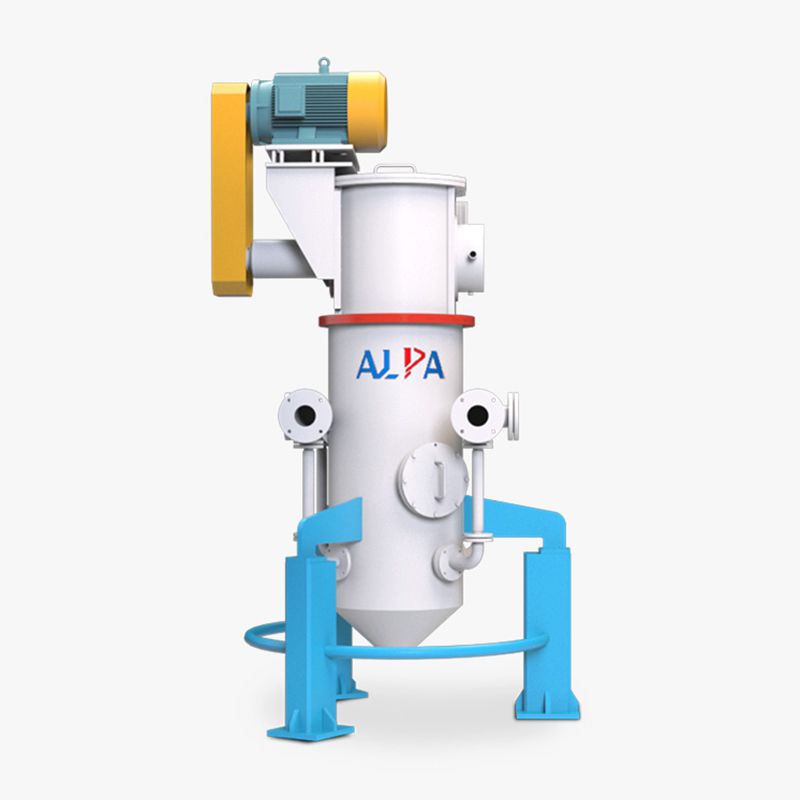

Fluidized Bed Opposed Jet Mill

Suitable for processing materials with high hardness and high purity

Fluidized Bed Opposed Jet Mill

Suitable for processing materials with high hardness and high purity

The jet mill is an ideal choice for those looking to grind heat-sensitive materials with low melting points without the aid of grinding media.
It provides precise control over the particle size, allowing you to adjust it freely.
The operation is conducted in a closed system that results in no dust or noise above 80dB - making it both clean and environmentally friendly.

Request a Quote

How it works

Compressed air is filtered and dried before being pushed into the grinding cavity of the Laval nozzle at a high speed. This causes materials to be impacted, ground, and sheared multiple times by intersecting high-pressure airflows in order to achieve optimal particle size reduction. The ground material then moves up an ascending airflow under the suction fan towards a classifier chamber. A powerful classifier wheel creates a strong centrifugal force that separates coarse particles from finer powders so only qualified powder enters either the cyclone separator or dust collector for collection. Coarser particles are sent back to the milling chamber for further milling.

Working Principle of Single Classifying Wheel Fluidized Bed Jet Mill

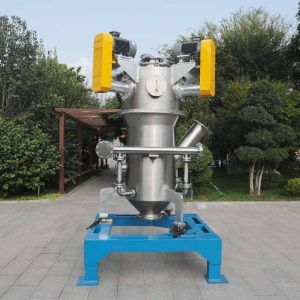

Working Principle of Multiple Classifying Wheel Fluidized Bed Jet Mill

Technical Parameters

Horizontal fluidized bed opposed jet mill

Parameter	MQW03	MQW06	MQW10	MQW20	MQW30	MQW40	MQW60	MQW80	MQW100	MQW120	MQW160	MQW240
Feed size (mm)	< 1	< 2	< 2	< 3	< 3	< 5	< 5	< 5	< 5	< 5	< 5	< 5
Product size (D97:μm)	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45
Production capacity (kg/h)	0.3~1	10~30	20~30	40~60	100~900	200~1200	500~2000	800~3000	1000~4000	1500~6000	2000~8000	4000~12000
Air consumption(m³/min)	3	6	10	20	30	40	60	80	100	120	160	240
Air Pressure (Mpa)	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1
Installed Power (kw)		4	5.5	11	15	22/30	37	37	45	55	55	90

Vertical fluidized bed opposed jet mill

Parameter	MQL03	MQL06	MQL10	MQL20	MQL30	MQL40	MQL60	MQL80	MQL100	MQL120	MQL160	MQL240
Feed size (mm)	< 3	< 3	< 3	< 3	< 3	< 5	< 5	< 5	< 5	< 5	< 5	< 5
Product size (D97:μm)	6~150	6~150	6~150	6~150	8~150	8~150	8~150	8~150	8~150	8~150	8~150	8~150
Production capacity (kg/h)	10~40	10~60	20~30	40~60	100~900	200~1200	500~2000	800~3000	1000~4000	1500~6000	2000~8000	4000~12000
Air consumption(m³/min)	3	6	10	20	30	40	60	80	100	120	160	240
Air Pressure (Mpa)	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1
Installed Power (kw)	7.5	11	15	22	30	37	45	55	55	75	90	132

Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.

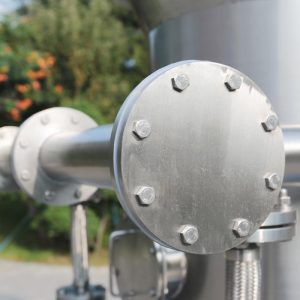

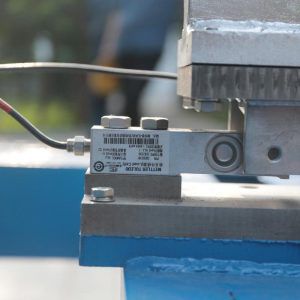

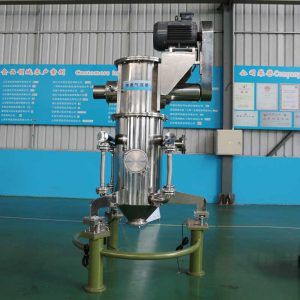

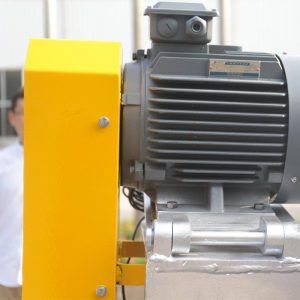

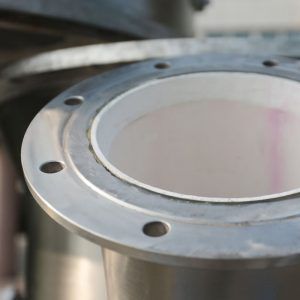

Album

ALPA is a highly respected name in particle and powder processing, transforming the way the industry views traditional powder processing. Our research and development initiatives have focused on dry grinding, classification and separation, powder shape control and surface modification of particles and powders over the past two decades. As a result, we are proficient in providing tailored, CE-certified products, such as air jet mills, mechanical mills, air classifiers, ball mill with classifier, surface modification lines and more.
