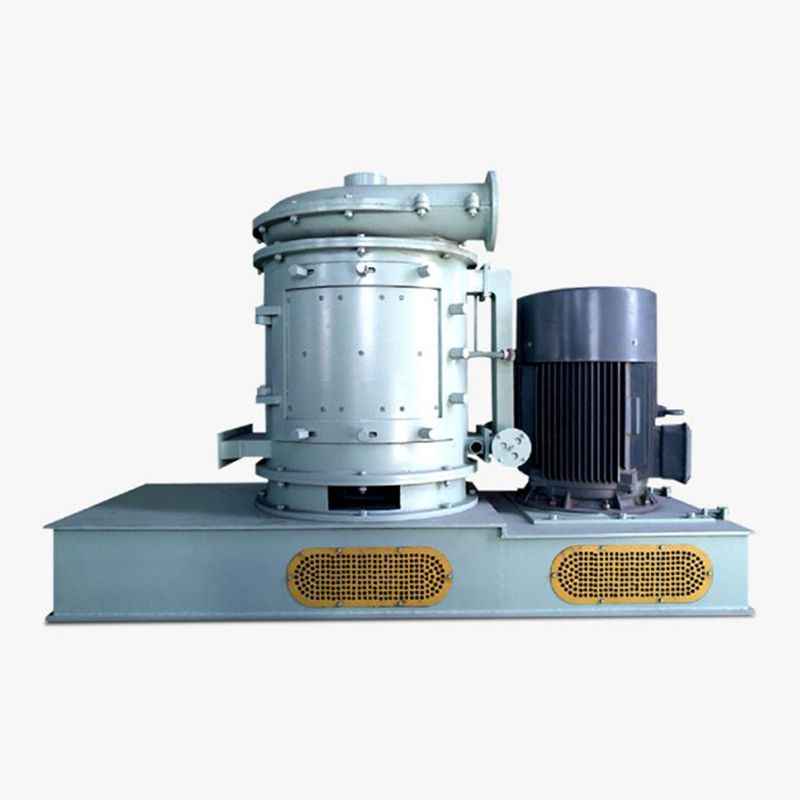

Rotor Mill

Using multi-layer grinding tools for grinding and grinding of agglomerates

Rotor Mill

Rotor Mill

Using multi-layer grinding tools for grinding and grinding of agglomerates

  • Features a multi-layer grinding cutter head with strong shearing force and breaking force, ideal for breaking up agglomerates, grinding and drying water-containing materials, and grinding fiber materials
  • Particularly suitable for the dispersion and reduction of agglomerated materials such as calcium carbonate light, kaolinite, aluminum hydroxide, magnesium oxide, polyvinyl alcohol, PVC, PE, cellulose, and other heat-sensitive materials
  • Widely applicable in non-metallic mineral processing industries as well as chemical, fuel, feed, and food production processes
  • Particle size range D50: 3 ~ 45 μm
Request a Quote
Technical Parameters
Parameter
400
600
800
1000
1200
1500
Grinding disc diameter (mm) 400 540 725 950 1150 1450
Grinding disc rotate speed (rpm) 4200 3050 2100 1850 1480 1250
Grinding disc linear speed (m/s) 87.5 86.7 79.8 92.0 89.1 94.9
Grinding disc power (kW) 30 45 75~90 110 132~160 200~250
Max. air flow (m³/h) 3000 4500 6000 7500 9000 12000

Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.
ALPA is a highly respected name in particle and powder processing, transforming the way the industry views traditional powder processing. Our research and development initiatives have focused on dry grinding, classification and separation, powder shape control and surface modification of particles and powders over the past two decades. As a result, we are proficient in providing tailored, CE-certified products, such as air jet mills, mechanical mills, air classifiers, ball mill with classifier, surface modification lines and more.
