Air Classifying Mill

Used for grinding and particle size classification in a single process

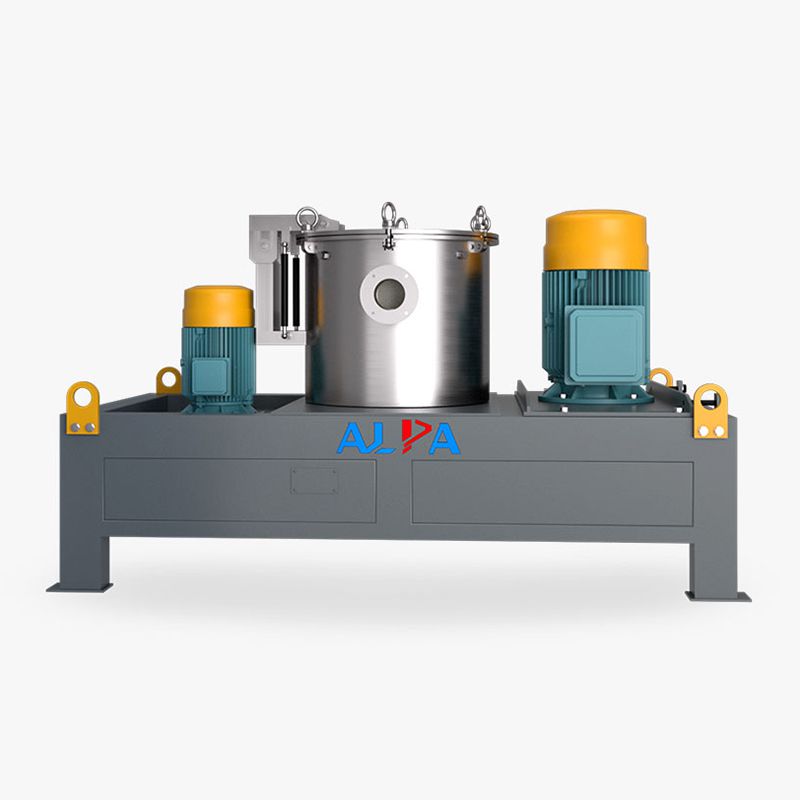

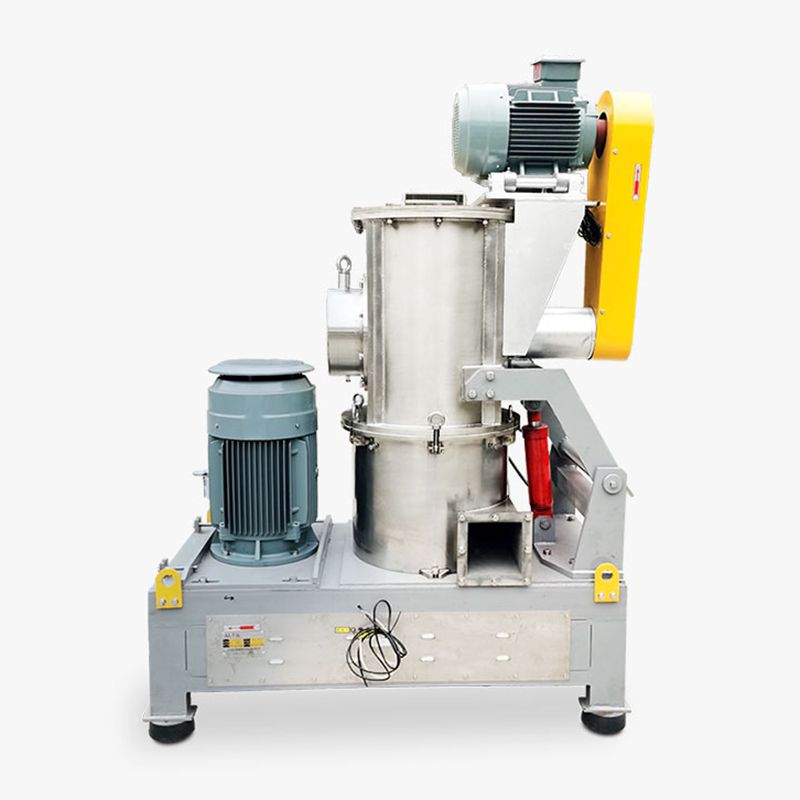

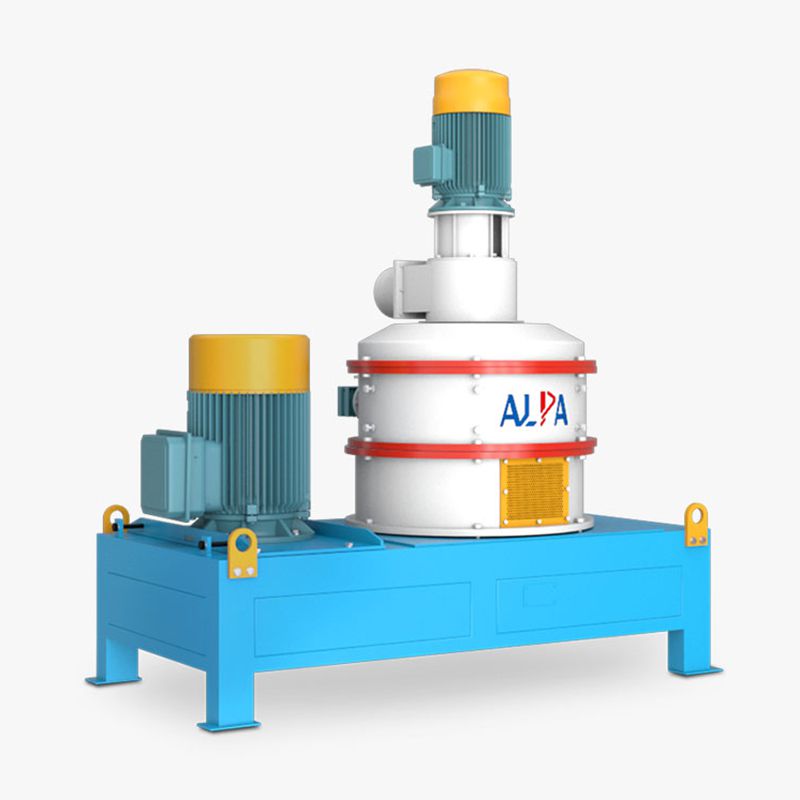

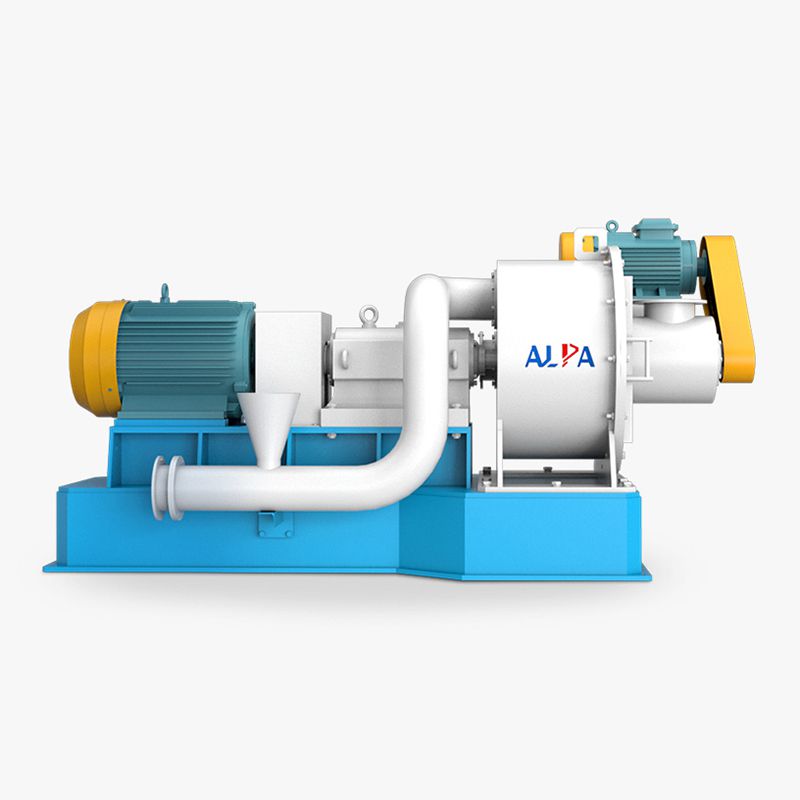

Air Classifying Mill
  • Air Classifying Mill
  • Air Classifying Mill
  • Air Classifying Mill
  • Air Classifying Mill

    • Air Classifying Mill

    Used for grinding and particle size classification in a single process

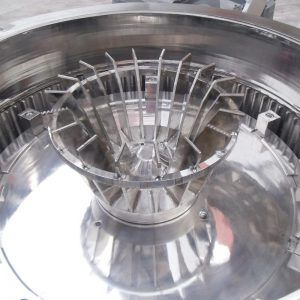

    • Integrating grinding and classifying is the key to achieving ideal particle sizes. By adjusting the classifier wheel, which can be installed either horizontally or vertically, you can easily obtain the desired results.
    • Adjust the type of grinding disc based on material characteristics in order to maximize efficiency and generate the desired forces, allowing for faster and more efficient results.

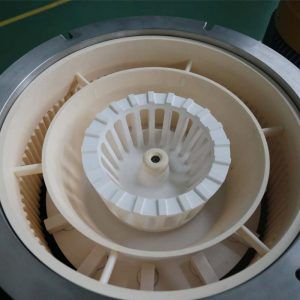

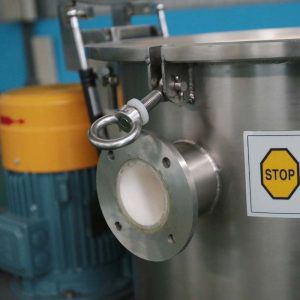

    • Ceramic materials are used to construct the key components, ensuring that there is absolutely no contact with metal during the entire grinding process for superior purity.
    • Capable of producing multiple particle sizes simultaneously, all in a closed system. This reduces dust production and noise levels significantly, creating an environmentally friendly process.
    Request a Quote
    How it works

    The feeding system evenly introduces the materials into the grinding chamber, where they are subjected to a high-speed rotating grinding disc. Under the centrifugal force, the material collides with the grinding gear ring and is then impacted by various comprehensive forces such as shearing, friction, and collision. The ground particles move with the airflow to the classifying chamber, where a frequency conversion-regulated classifier wheel sorts out coarse and fine powders. Only qualified powder enters either the cyclone separator or dust collector for collection. Coarser particles are sent back to the milling chamber for further milling.

    Working principle of CSM-V series Air Classifying Mill
    Working principle of CSM-HJ series Air Classifying Mill
    Working principle of CSM-VD series Air Classifying Mill
    Technical Parameters

    CSM-V

    Parameter
    280
    350
    410
    510
    710
    760
    900
    1000
    1100
    1250
    1500
    2000
    Grinding disc diameter (mm) 280 340 410 510 710 760 900 1000 1100 1250 1500 2000
    Grinding gear ring diameter (mm) 290 350 420 520 720 770 910 1010 1110 1260 1510 2010
    Grinding disc rotate speed (rpm) 7500 6215 4800 4200 3000 2800 2350 2100 1920 1800 1500 1120
    Max. grinding disc linear speed (m/s) 110.0 110.6 103.0 112.2 111.5 111.4 110.7 110.0 110.6 117.3 117.0 117.0
    Grinding disc power (kW) 7.5 11~15 22 30 45 55 75~90 90 110~132 160~200 250 355
    Classifier power (kW) 2.2 3 4 5.5 7.5 7.5~11 15 15~22 22~30 22~37 45~55 55~75
    Max. classifier wheel rotate speed (rpm) 4500 4000 3250 3000 2920 2500 2200 2000 1800 1800 1500 1150
    Max. air flow (m³/h) 700 1200 1800 3000 4500 5400 8000 10000 12000 16500 22500 36000

    CSM-H

    Parameter
    280
    400
    510
    710
    1000
    1250
    1500
    Grinding disc diameter (mm) 280 410 510 710 1000 1250 1500
    Grinding disc rotate speed (rpm) 7500 4800 4200 3000 2100 1800 1500
    Max. grinding disc linear speed (m/s) 110.0 103.0 112.2 111.5 110.0 117.0 117.0
    Grinding disc power (kW) 7.5 22 30 45 75~90 132~160 200~250
    Classifier power (kW) 3 5.5 7.5 15 22 30 45
    Max. classifier wheel rotate speed (rpm) 8500 6000 4650 3300 2400 1900 1500
    Max. air flow (m³/h) 600 1800 3000 4500 7500 12000 16500

    CSM-VD

    Parameter
    280
    350
    450
    510
    710
    900
    1100
    Grinding disc diameter (mm) 280 350 450 510 710 900 1100
    Grinding disc rotate speed (rpm) 7000 5600 4350 3850 2760 2350 1920
    Max. grinding disc linear speed (m/s) 102.6 102.6 102.5 102.6 102.6 110.7 110.6
    Grinding disc power (kW) 7.5 11 22 30 45 75~90 110~132
    Classifier power (kW) 1.5 3 5.5 5.5 7.5 15 30
    Max. classifier wheel rotate speed (rpm) 4500 4000 3200 3000 3000 2200 2000
    Max. air flow (m³/h) 600 1200 2400 3000 4500 8000 12000

    CSM-HJ

    Parameter
    400
    500
    630
    800
    1000
    1250
    1500
    Grinding disc diameter (mm) 410 510 630 760 1000 1250 1500
    Grinding disc rotate speed (rpm) 4800 4200 3380 2800 2100 1800 1500
    Max. grinding disc linear speed (m/s) 103.0 112.2 111.4 111.4 110.0 117.3 117.0
    Grinding disc power (kW) 22 30 37 55 90 160~200 250
    Classifier power (kW) 4 5.5 7.5 7.5~11 15~22 22~37 37~45
    Max. classifier wheel rotate speed (rpm) 6000 4650 4000 3000 2400 1900 1500
    Max. air flow (m³/h) 1600 3000 5400 5400 10000 16500 22500

    Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.

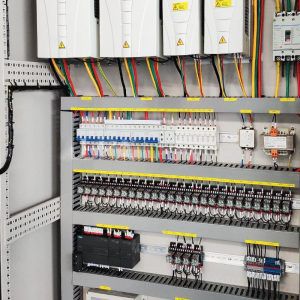

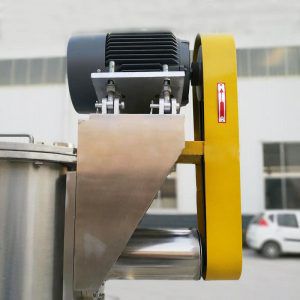

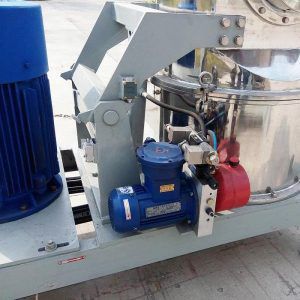

    Album
    • Air Classifying Mill
    • Air Classifying Mill
    • Air Classifying Mill
    • Air Classifying Mill
    • Air Classifying Mill
    • Air Classifying Mill
    ALPA is a highly respected name in particle and powder processing, transforming the way the industry views traditional powder processing. Our research and development initiatives have focused on dry grinding, classification and separation, powder shape control and surface modification of particles and powders over the past two decades. As a result, we are proficient in providing tailored, CE-certified products, such as air jet mills, mechanical mills, air classifiers, ball mill with classifier, surface modification lines and more.
