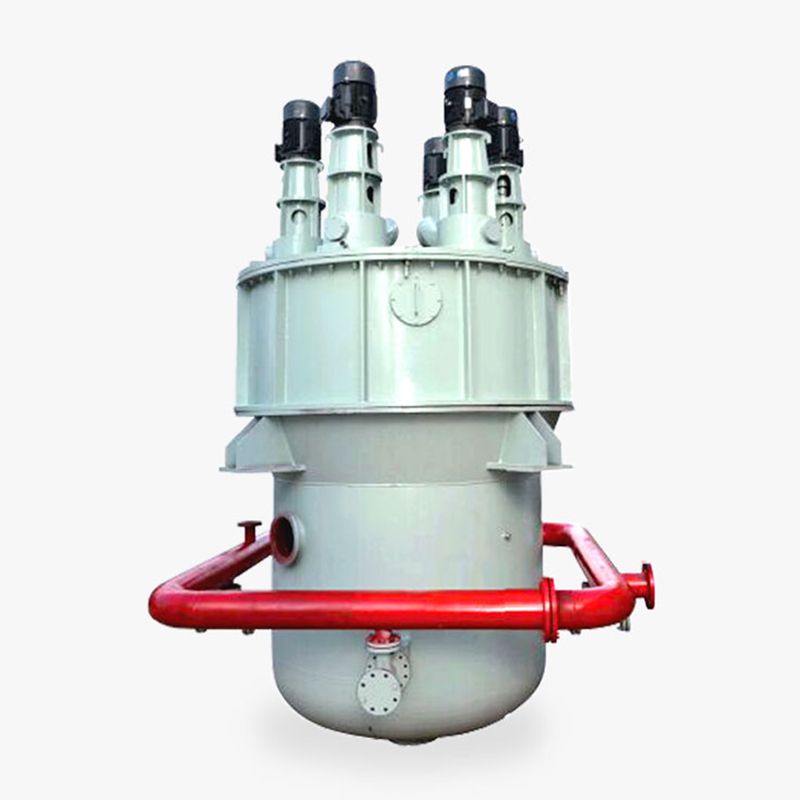

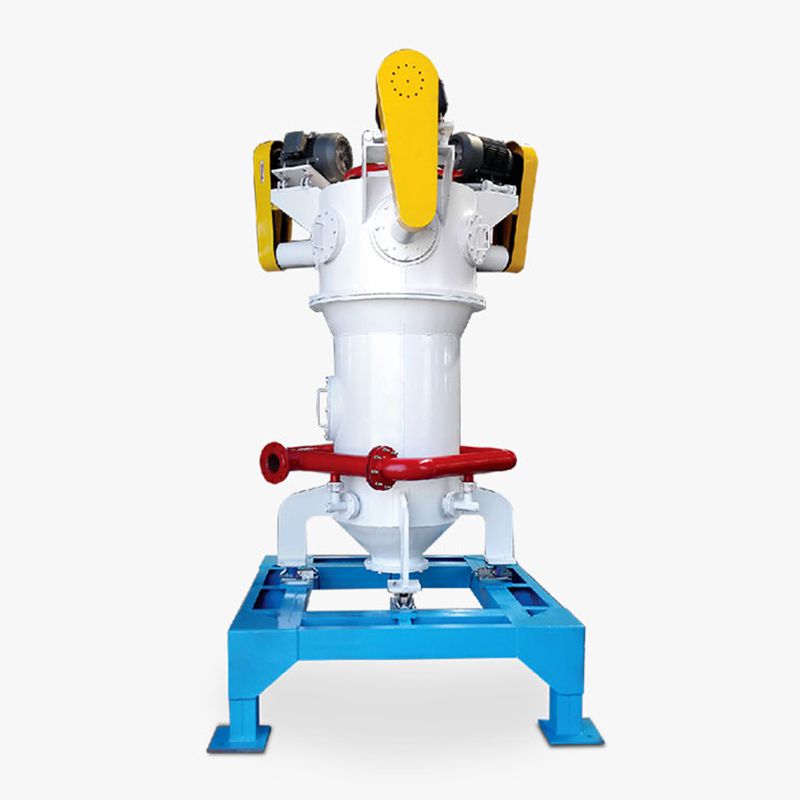

Superheated Steam Jet Mill

Using superheated steam as the grinding gas, improved energy efficiency

Superheated Steam Jet Mill
  • Superheated Steam Jet Mill
  • Superheated Steam Jet Mill

    • Superheated Steam Jet Mill

    Using superheated steam as the grinding gas, improved energy efficiency

    • Superheated steam source providing high energy utilization rate and low operating cost
    • Grinding particle size range D50: 0.5-10 μm
    • Revolutionary innovation of dry grinding technology
    • Improved energy efficiency, low carbon, energy saving and environmental protection for plants
    • Applicable: bulk solid wastes such as steel slag, slag and fly ash; non-metallic minerals such as calcium carbonate, talc and quartz; new materials such as lithium carbonate, lithium iron phosphate and precipitated silica.
    Request a Quote
    How it works

    As an upgraded version of the conventional jet mill, the superheated steam jet mill utilizes a unique high-temperature mechanical sealing technology and cooling technique. High-temperature steam is used as the kinetic energy source to propel materials to collide and grind at an accelerated speed through a specially designed Laval nozzle. After being ground, the materials undergo cyclone classification, at which point a heat preservation collection system collects the qualified powders while any coarse particles fall back into the grinding chamber. The entire process is achieved without using any liquids.

    Advantages
    • Producing nanometer-size powders under a dry process
    • Superheated steam source creating a working pressure between 8-40 bar and steam temperature between 230-360 ℃, which can also dry the powder with heat
    • High jet velocity provides high kinetics and strong grinding force with nozzle outlet velocity up to 1020 m/s, suitable for finer powder production
    • Low viscosity of steam makes it easier to obtain finer powders
    • Full self-grinding of the material, ensuring product purity and wear resistance of the mill
    • High speed and low dynamic viscosity increase grinding efficiency and classification accuracy while reducing over-grinding
    • Good particle shape with high activity
    • Classifier wheel automatically separates materials through airflow, preventing coarse particles from discharge
    • Key components such as lining, classifier and nozzle are made from ceramic materials (e.g. Alumina, zirconia, or silicon carbide) for zero contact with metal during the whole grinding process
    • The classifier rotor can be installed horizontally or vertically; more rotors available
    • Rotor speed adjustable by frequency conversion allowing flexible particle size distribution adjustment
    • Closed loop system, reducing dust and noise and creating a clean production environment
    • PLC control system, easy to operate
    • Can be used for superfine processing of high-viscosity products
    • Motor connection via belt improves rotating speed
    • Multi-stage classifier optional, allows the production of multiple particle sizes at one time
    • Precise weighing control system available. ensuring product stability and consistency
    • Explosion-proof design or nitrogen circulation upgrades optional, to meet ultra-fine grinding requirements for flammable, explosive or easily oxidized materials
    Technical Parameters
    Parameter (S-MQL/W)
    2000
    3000
    4000
    6000
    10000
    15000
    20000
    Steam consumption (kg/h) 1000~2000 1500~3000 2000~4000 3000~6000 6000~10000 10000~15000 15000~20000
    Steam pressure (bar) 5~40 5~40 5~40 5~40 5~40 5~40 5~40
    Temperature (℃) 260~360 260~360 260~360 260~360 260~360 260~360 260~360
    Production capacity (kg/h) 400~1000 600~1500 800~2000 1200~3000 2000~5000 3000~8000 4000~10000
    Product size (D50:μm) 2~10 2~12 2~12 2~14 2~14 2~16 2~16

    Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.
