How it works
The feeding system evenly distributes the materials into the grinding chamber, where they are exposed to a strong impact from the high-speed rotating grinding moving disc. The combination of friction, shearing and collision between the static disc and gear ring creates comprehensive forces that grind the materials. Depending on specific material properties, different combination of both discs can be used.
Advantages
- Grinding particle size range D50: 10 ~ 850 μm
- Aperture of sieve 2-3 mm
- Compact structure requiring minimal floor space, simple disassembly for cleaning purposes
- Closed loop system with low dust and noise level
- PLC control system, easy to operate
- Low installed power with wide application range and high cost performance
- A belt can be used as an effective solution for powering machines when the renowned motor brands do not provide high-speed motors
- Explosion-proof design available for processing flammable and explosive materials
- Offer designs for high, low and normal temperatures, with air closed circulation and inert gas circulation to meet the temperature requirements of various materials
Technical Parameters
| Parameter | CUM-160F | CUM-250F | CUM-360F |
| Grinding disc diameter (mm) | 150 | 250 | 350 |
| Max. rotate speed (r/min) | 12000 | 7500 | 5550 |
| Power (kW) | 3~4 | 5.5~7.5 | 11~15 |
| Grinding fineness (mesh) | 20~325 | 20~325 | 20~325 |
| Production capacity (kg/h) | 5~50 | 15~200 | 25~500 |

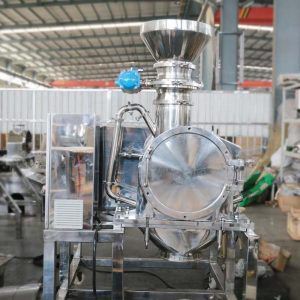

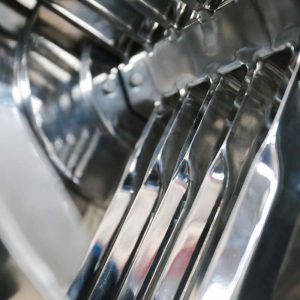

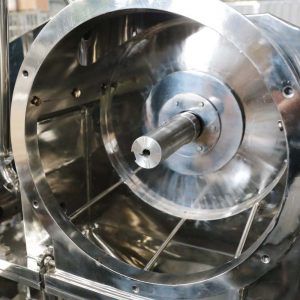

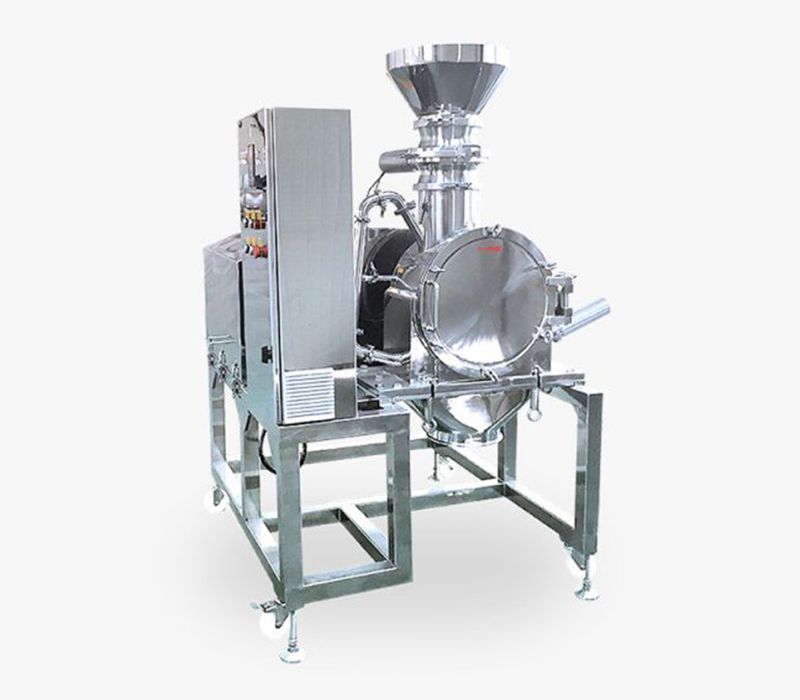

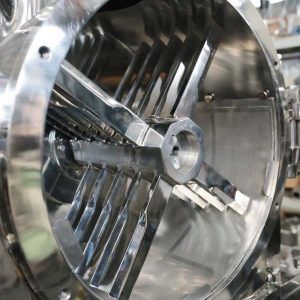

Album
ALPA is a highly respected name in particle and powder processing, transforming the way the industry views traditional powder processing. Our research and development initiatives have focused on dry grinding, classification and separation, powder shape control and surface modification of particles and powders over the past two decades. As a result, we are proficient in providing tailored, CE-certified products, such as air jet mills, mechanical mills, air classifiers, ball mill with classifier, surface modification lines and more.
